Your Complete Flow Energy Solution is here.

Sierra Instruments designs and manufactures high-performance thermal mass flow controllers, immersible thermal mass flowmeters, vortex flow meters and transit-time ultrasonic flow meters for nearly every gas, liquid, or steam application.


Applications


Gas

Gas Flow Meters & Controllers for Accurate Mass Flow Measurement

Sierra designs and manufactures a wide range of today's most advanced analog and digital gas flow meters, mass flow meters, controllers and switches across three core technologies: Capillary Thermal, Immersible Thermal, and Mass Vortex. Each gas flowmeter or controller meets exacting standards, and we can also customize your flow rate sensor to meet application requirements (often free of charge).

READ MORE

Liquid

Ultrasonic Meters, Volumetric Vortex Meters and Flow Switches for Liquids

Measure liquid flow rates quickly and more accurately with Sierra transit-time ultrasonic flow meters, vortex flow meters or thermal flow switches. Manufactured by Sierra’s team of flow engineers, our liquid flow meters are suited for even the most challenging liquid flow applications.

READ MORE

Steam

Vortex Volumetric and Multivariable Flow Meters for Saturated & Superheated Steam

The ideal technology for steam flow measurement, the InnovaMass vortex steam flow meter measures five process variables with one process connection: mass flow, volumetric flow, density, pressure, and temperature. With five high-accuracy results available from a single device, total cost-of-ownership plummets while still providing accurate steam flow meter rates. Lower initial cost, less complex installation, and reduced maintenance costs contributed to significant overall savings to maximize your steam productivity .

READ MORE


Products

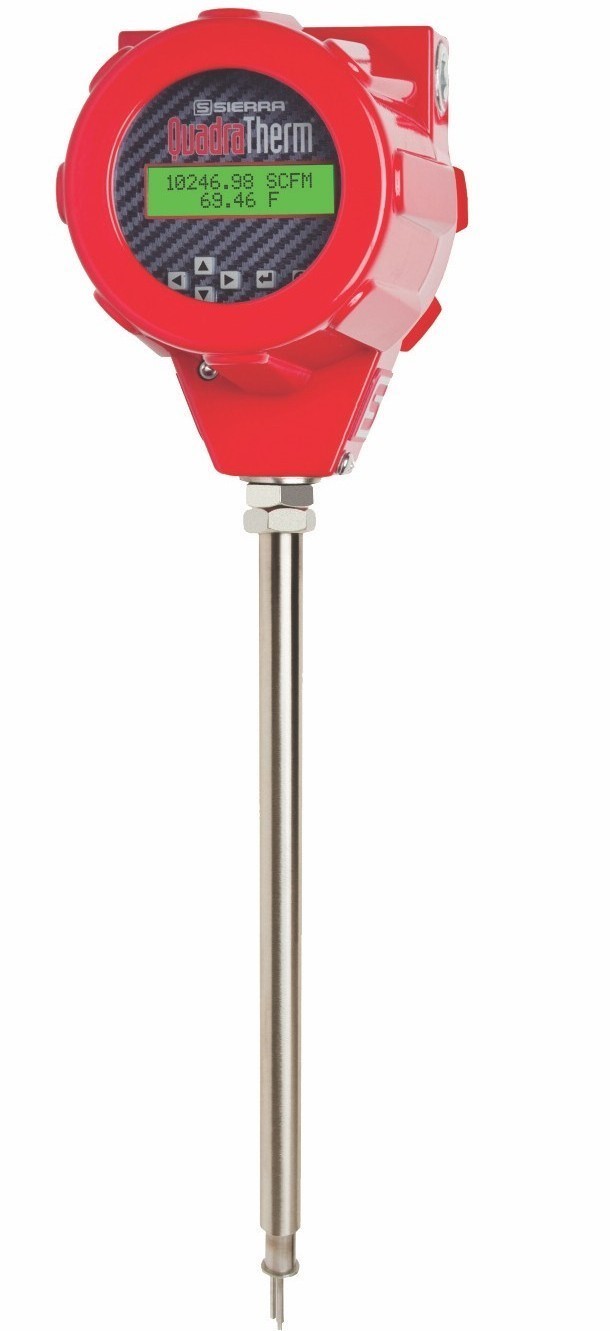

Thermal Gas Flow Meters - QuadraTherm®

Thermal

  • High accuracy: Up to +/- 0.5% of reading

  • Very low pressure drop

  • No moving parts

  • Application flexibility

  • Gases: Air, natural gas, mixtures, Flammables, inert gases

  • Direct digital gas flow rate meaurement

  • Flow rates: Down to 0.03 smps (0.1 sfps) & up to 305 smps (60,000 sfpm)

  • Pipe/duct sizes 2 inches to 72 inches (1.8M)

  • Hot-tap probe retractor

  • 100:1 turndown

READ MORE

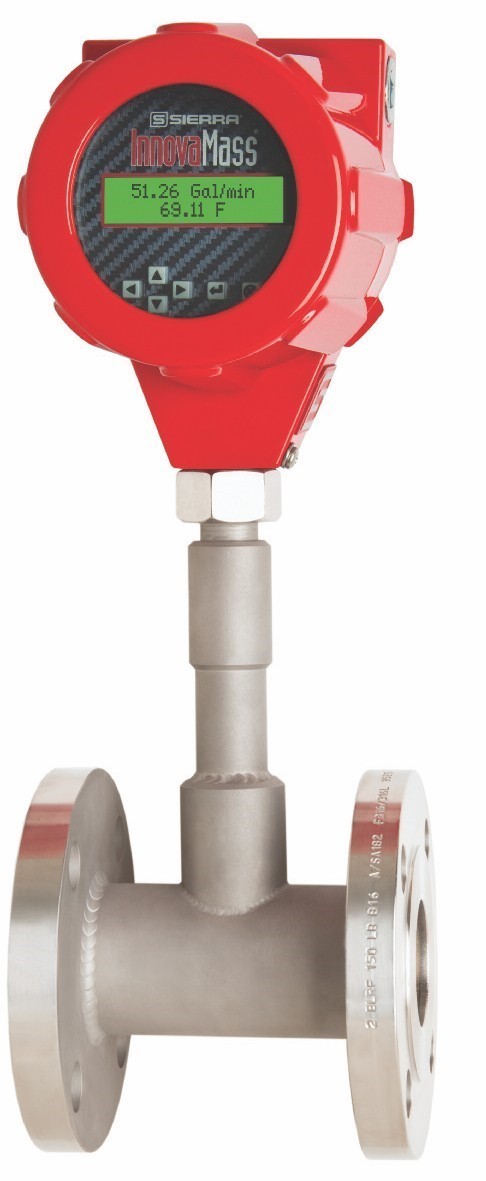

Vortex Volumetric and Multivariable Steam Flow Meters - InnovaMass®

Vortex

The ideal technology for steam flow measurement, the InnovaMass vortex steam flow meter measures five process variables with one process connection:

  1. Mass flow

  2. Volumetric flow,

  3. Density,

  4. Pressure and

  5. Temperature.

With five high-accuracy results available from a single device, total cost-of-ownership plummets while still providing accurate steam flow meter rates. Lower initial cost, less complex installation, and reduced maintenance costs contributed to significant overall savings to maximize your steam productivity.

  • Accuracy: Up to +/-0.7% of reading

  • Fluids: Mass or volumetric flow metering of gases, liquids, steam

  • Pipe/duct size: Insertion version: 2 inches (50.8mm) to 72 inches (1.8M) Inline version: 1 inch (DN25) to 8 inches (DN200)

  • Hot-tap probe retractor

  • 30:1 turndown

READ MORE

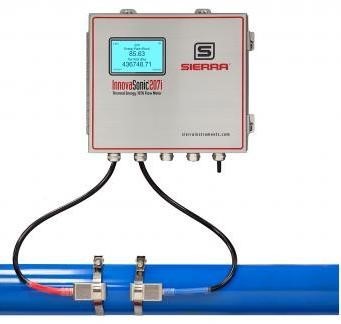

UltraSonic - InnovaSonic®

UltraSonic

In addition to gas measurement, many facilities must measure liquid flow energy rates to reduce water bills, determine leakage rates, increase system efficiency, measure thermal energy BTU, and influent and effluent liquid flow. Regardless of the application, Innovasonic clamp-on ultrasonic flowmeters are ideal for liquid flow applications. Clamp-on ultrasonic flow meters achieve high accuracy at low and high flows, save time with no pipe cutting or process shutdown, and are not affected by external noise.

  • High accuracy: +/- 0.5% of reading from 0.16 to 40 ft/s (0.05 to 12 m/s)

  • Fluids: Water and all liquids

  • Fits a wide range of pipe sizes from 2 inches to 236 inches (50 to 6000 mm)

  • Clamp-on sensors, no pipe cutting, no shutdown

  • Real-time liquid density compensation

  • Optional clamp-on or insertion PT 100 temperature inputs for thermal energy/BTU measurement.

    READ MORE

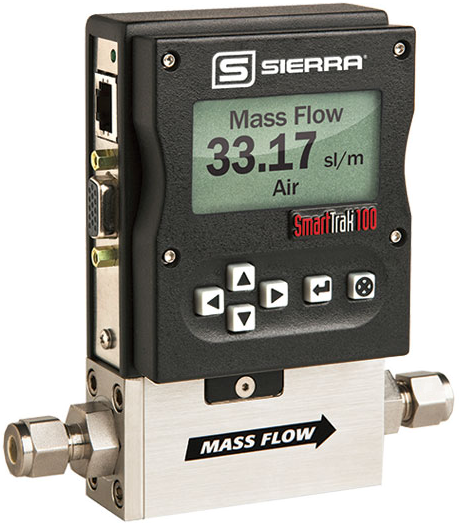

Mass Flow Controllers -

SmartTrak®

flow-controllerSmartTrak mass flow controllers and mass flow meters provide researchers, systems integrators, and OEM's with high performance gas mass flow control and measurement for nearly any application requirement:

  • Multi-gas capability

  • Low flows (0 to 0.1 sccm)

  • High flows (to 1000 slpm)

  • Corrosive gases

  • Low pressure drop (4.5 psid)

  • High pressure (up to 5000 psig)

  • Small footprint

  • Easy systems integration.

REASD MORE
